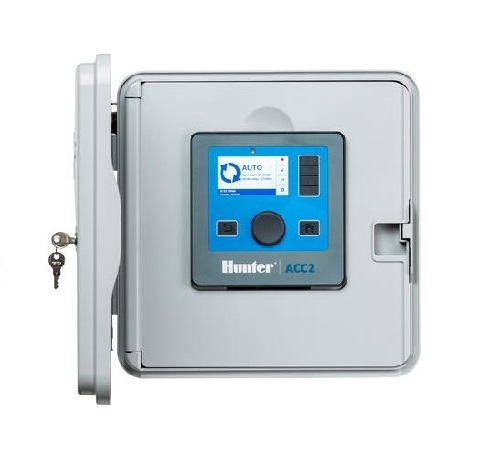

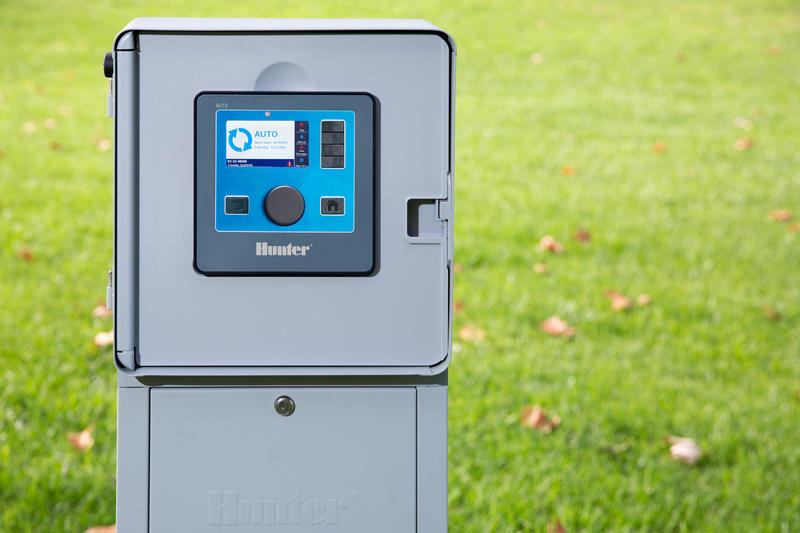

Hunter ACC2 Advanced Commercial Controller

Hunter's latest offering, the ACC2 controller, is a powerful, intelligent, and flexible solution for water management needs in large-scale commercial projects. The controller boasts a robust transformer at its core, allowing it to safely operate up to 14 valves concurrently and maximize watering schedules' efficiency. It can be tailored to any commercial project, with configurations ranging from 12 to 54 stations, up to six flow meter inputs, and six pump/master valve outputs. Additionally, its color backlit display and reversible facepack make program setup and diagnostics quick and simple. The ACC2 is equipped with built-in intelligence, capable of maintaining preset flows on up to six flow zones at the same time. It continually monitors the system for breaks, leaks, and electrical faults, halting irrigation and pinpointing the root cause of any issues that arise. The controller can even respond to sensor input with specific actions, such as switching water supplies when levels drop or initiating a program when soil moisture is low. The ACC2's flexibility is impressive, with 32 independent programs, 10 start times, and a range of overlapping, stacking, and flow management configurations. Innovative Conditional Response features enable automatic pre-programmed actions based on sensor input and other conditions. Optional external alarm output alerts maintenance personnel to alarm conditions, and the Wi-Fi module is compatible with nearly all mobile devices. The ACC2 is the most advanced commercial controller available, providing maximum capability for even the most significant projects. Features 12 to 54 stations Up to 6 flow sensor inputs and 6 P/MV outputs 32 automatic programs (10 start times each) for precise plant management Block function to group stations and consolidate large systems Built-in Solar Sync® logic for smart water savings Real-time flow monitoring detects and diagnoses leaks in up to 6 flow zones Flow management optimizes watering at safe velocities High-visibility, full-color display with reversible facepack Conditional Response “if/then” programming for active responses to sensor inputs User management password protection, with two levels of access Optional plug-in communications modules for cloud or network control Detailed alarm logs in plain language Extreme service lightning protection Easy Retrieve™ programming backup and restore Non-Water Windows to inhibit accidental irrigation         To check the Advance Features, Click the "Advanced Features" Tab button above. Operating Specifications Transformer input: 120/230 VAC Maximum AC current draw: 120 VAC, 2 A/230 VAC, 1 A Transformer output: 24 VAC, ~3 A P/MV outputs (24 VAC): Up to 6; 3 included, 0.8 A each Sensor inputs: 3 Clik, 1 Solar Sync, and up to 6 Flow sensors (3 included) Approvals: Wall Mounts IP44, Plastic Pedestal IP34,NEMA 3R, UL, cUL, FCC, CE, RCM Warranty period: 5 years User-Installed Options ROAM/ROAM XL remote controls WSS-SEN or SOLAR-SYNC-SEN for automatic water savings Flow sensors (up to 6) including Flow-Sync, WFS, and other approved equals Additional Specifications Number of stations: 12 to 54, for large projects Simultaneous station operation: Up to 14 solenoids Expands in 6-station increments Extreme service lightning protection, standard on all A2M-600 output modules Station outputs: 0.8 A each
