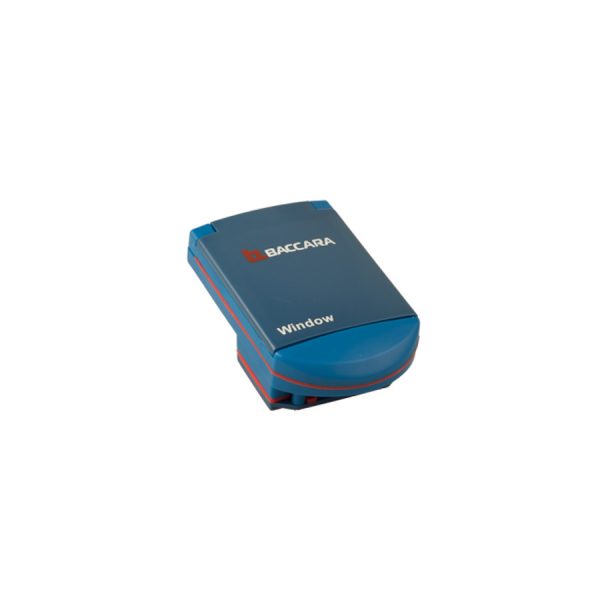

Features: Programmable operating window Run Time in Seconds, minutes and hours Suitable for irrigation and propagation WindowPlus model will run a Gem-Sol Coil Precision Model has an accurate clock for precise, simultaneous operation Baccara DC controllers will run a Dorot & Baccara latching coils Options: Solar panel, charger, accurate clock Both Window and Window controllers have identical programming. Technical Specs Operating temp: -10° to 60°C Battery: 9V alkaline battery included Use the best quality to ensure at least one year's autonomous operation. Various mounting options : Directly on a 28mm diameter solenoid in a horizontal or vertical position with an adaptor Wall mounting with four screws Accessories provided Window: compatible with G75 4Ω latch operator Window : has a stronger output to operate G80 latch and GEM-SOL 'IL' latch coils Valve: Window: can operate any valve equipped with 3/4" UNEF solenoid cavity (Richdel® type) Window : only with Baccara latch valve Standard / Certification CE - Standard protection class Dust and watertight: IP67 and NEMA 4X Key Programming Features: Set start and end hours Set On time (1 second to 12 hours) Set Off time (1 min to 12 hours) Day select OFF
