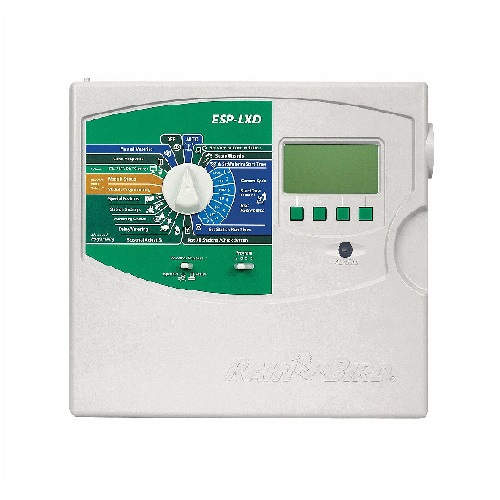

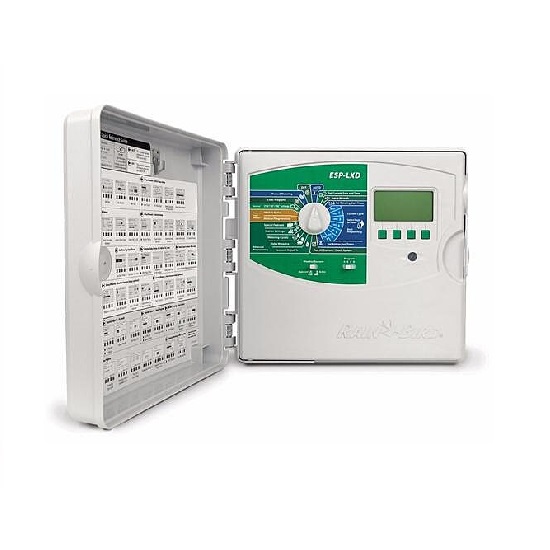

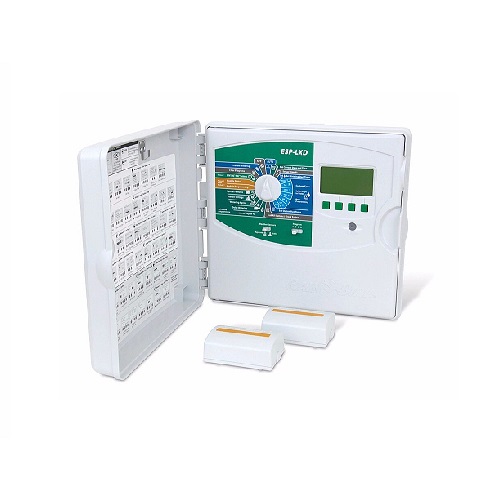

The Rain Bird ESP-LXD is a top-of-the-line two-wire decoder controller designed for efficient and reliable operation in even the most demanding irrigation applications. With four decades of expertise and thousands of successful installations behind it, the ESP-LXD boasts a range of advanced features that make it easy to use and maintain. The ESP-LXD is equipped with a large, easy-to-read display and a simple-to-use 'hand,' 'off,' 'auto' dial, which makes programming and controlling irrigation zones a breeze. It also supports English and Spanish language options, ensuring compatibility with a wide range of users. The ESP-LXD's innovative two-wire technology significantly reduces installation and troubleshooting time, even for large-scale operations. Its intuitive programming interface allows for quick and easy setup, while the decoder wiring system simplifies installation and maintenance by reducing the number of wires required. Operating Specifications Station timing: up to 96 hours of continuous runtime Program level and global Monthly Seasonal Adjust: 0% to 300% 4 independent programs (ABCD); ABC programs stack, ABCD overlap 8 start times per program Manual station, program, test program Certifications UL, CE, cUL, C-Tick Electrical Specifications Input required: 120 VAC ± 10%, 60Hz Power back-up: Lithium coin-cell battery maintains time and date while nonvolatile memory maintains the schedule Multi-valve station capacity: up to 2 solenoid valves per station; simultaneous operation of up to eight solenoids and/or master valves Dimensions (W x H x D) 36.4 cm W x 32.2 cm H x 14.0 cm D (14.32” W x 12.69” H x 5.50” D)
