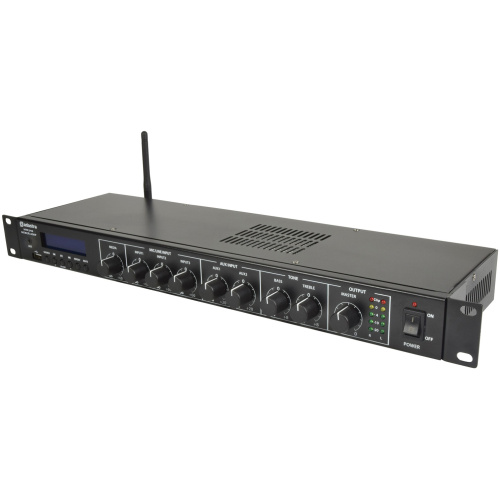

Compact 1U mixer-amp featuring a built-in media player with DAB and Bluetooth receiver. 3 mono inputs connect via XLR microphone or line input (switchable). Each of these inputs has switchable 20V phantom power for use with condenser microphones or D.I. boxes and channel 1 has a variable priority function. Two stereo auxiliary line inputs are provided on RCA connectors with a stereo line output. Media player operating modes include 3.5mm Aux input, USB audio player, DAB /FM radio tuner and Bluetooth receiver for playback from a smart phone or tablet. Main left and right speaker outputs are connected using standard Speakon leads. Connect 2 or 4 speakers for a complete music and voice installation or mobile PA system for functions, conferences and fitness classes.DAB /FM radio tunerBluetooth receiver with unique serial IDUSB audio playerSwitchable 20V phantom powerVariable priority muting for channel 124V emergency mute contacts—Power supply: 100-240Vac, 50/60Hz (IEC)Fuse: T3.15AOutput power : 4 Ohms: 2 x 120WrmsInputs : mic/line: 3 x XLR (bal/unbal)Inputs : aux: 2 x L R RCAInput : line: 3.5mm jack to media playerAudio source: DAB /FM tuner, USB player, Bluetooth receiverLine output: L R RCASpeaker outputs: L R SPK connectorEmergency control: 24V contacts mute all except channel 1Phantom power: 20V (switchable channels 1-3)Bluetooth version: 5.0Controls: Media, 3 x Mic/Line, 2 x Aux, Treble, Bass, Master levelRear panel controls: Priority muting level, mic/line and phantom DIP switchesInput impedance: 2.2k Ohms (mic/line), 10k Ohms (aux)Frequency response : mic: 20Hz – 18kHzFrequency response : line: 14Hz – 20kHzFrequency response : aux: 10Hz – 23kHzInput sensitivity : mic/line : 45dBVInput sensitivity : aux/line : 10dBVSignal to noise ratio : mic: 55dBSignal to noise ratio : aux/line: 60dBDimensions: 482 x 123 x 44mmWeight: 1.96kg—
