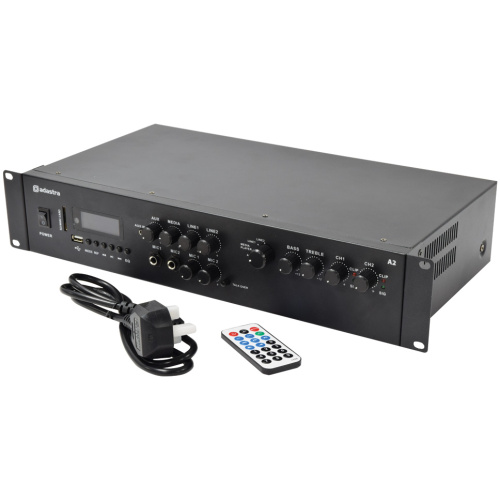

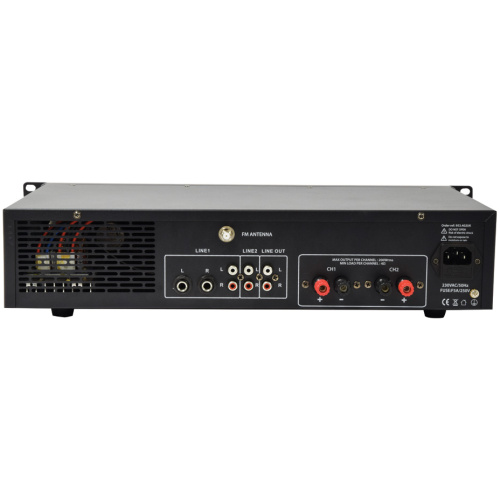

Fully featured stereo amplifier with mixer section for 2 microphones and a stereo audio source. An inbuilt media player section offers playback of mp3 audio tracks from USB drive or SD card and also has a Bluetooth receiver and FM radio tuner. A rotary switch selects between 2 rear stereo inputs, a front 3.5mm stereo input or the built-in media player. Speaker connections on the rear panel are via 4mm binding posts, which can drive up to 2 x 8 Ohm speakers per channel to deliver 2 x 200W. Designed to offer installers a flexible solution for P.A. and music playback in bars, restaurants and function rooms.Media player with USB/SD playbackFM radio tuner with external aerial connectionBluetooth receiver—Power supply 230Vac, 50Hz (IEC)Fuse F5A, 250VOutput power rms @ 4 Ohms 2 x 200WOutput power rms @ 8 Ohms 2 x 100WAmplifier : construction Class DFrequency response 20Hz – 20kHz ±0.5dBMicrophone inputs 2 x 6.3mm jack (mono)Line inputs Line 1: L R (6.3mm jack/RCA), Line 2: L R (RCA)Input sensitivity : line 0.775VrmsAuxiliary input 3.5mm stereo jackInput sensitivity : aux 0.480VrmsInput impedance 20k Ohms (balanced), 10k Ohms (unbalanced)Audio source USB/SD mp3 playback, FM tuner, BT receiverBluetooth version 2.3Input controls Aux, Media, Line1, Line2, Mic1, Mic2, TalkoverLine output 2 x RCASpeaker outputs 4mm binding posts (2 channels)Antenna connection F type (FM tuner)Output controls Source select, Bass, Treble, Ch1, Ch2Dynamic range 92dBTHD N <0.1%Protection Thermal, over-current, over-voltage, short-circuitDimensions 482 x 240 x 88mmWeight 5.21k—
