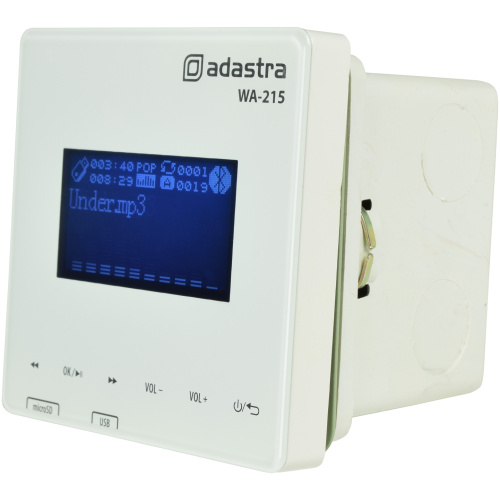

Compact audio controller with 2 x 15W digital amplifier built into a single gang wall plate. Powered directly from 100-240Vac mains supply, the unit can be installed into a partition wall or 47mm back box and provides a minimal yet fully functional control surface. The WA-215 has an inbuilt USB/MicroSD audio player, an FM tuner and Bluetooth receiver. Key functions are operated from the front touch panel or by using the supplied IR remote control. Connections for 2 speakers, mains power, FM antenna and an external line input are provided at the rear on screw terminal Euroblock connectors. Trigger contacts are also included for media playback and in internal doorbell sound. A complete and versatile audio solution for wall or ceiling background music speakers in the home or commercial premises.Supplied with 57mm back box and IR remote control handset.60mm backlit LCD displayWipe clean touch control panelBuilt in USB/microSD player and FM tunerBluetooth connectivityThe box for this item contains:WA-215 wall mount amplifier media playerI.R. remote control handset—Power supply: 100-240Vac, 50/60Hz (euroblock terminals)Output: 2 x 15W @ 8 ohms (euroblock terminals)Audio source: USB / microSD player, FM tuner and Bluetooth receiverAuxiliary input: Left right line in (euroblock terminals)Audio format: mp3, wma, wavFM: tuning range: 87.5 – 108MHzBluetooth range: Up to 10mBluetooth version: 4.1Frequency response: 20Hz – 20kHz (±3dB)THD: <0.03% at 1kHz, 1WS/N ratio: >98dBTrigger: Remote playback and door bell (euroblock terminals)Mounting depth: 47mm (with adequate ventilation), 57mm back box suppliedDimensions: 86 x 86 x 50mmWeight: 150g—
