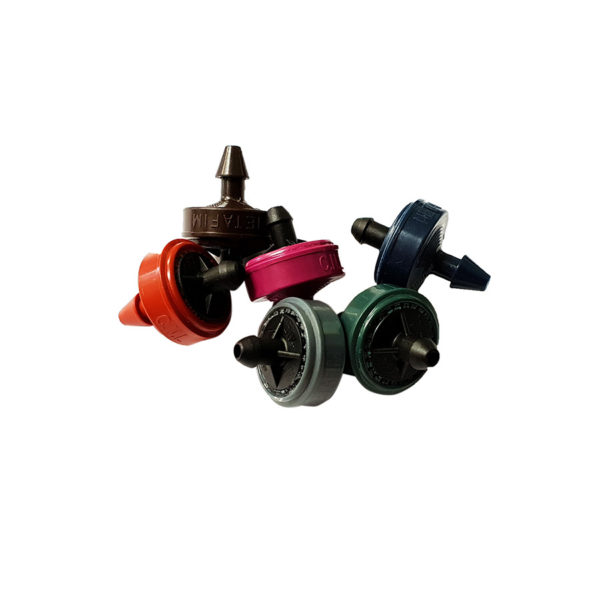

Applications Greenhouses, nurseries, citrus. Orchards, deciduous and tree irrigation. Specifications Recommended filtration: 130 micron / 120 mesh. Filtration method is to be selected based on the kind and concentration of the dirt particles existing in the water. Wherever sand exceeding 2 ppm exists in the water, a Hydrocyclon filter is to be installed before the main filter. When sand / silt / clay solids exceed 100ppm, pre treatment will be applied according to Netafim™ expert team’s instructions. TurboNet™ labyrinth with large water passage. To be “inserted” into thick-walled pipes (0.9, 1.0 and 1.2 mm.) Injected dripper, very low CV. 3mm outlet 4mm inlet UV resistant. Resistant to standard nutrients used in agricultural. PCJ on-line drippers meet ISO 9261 Standards with production certified by the Israel Standards Institute (SII). Use 3mm hole punch only Features and Benefits Pressure compensated : Precise and equal amounts of water are delivered over a broad pressure range. 100% uniformity of water and nutrient distribution along the laterals. PCJ-LCNL & PCJ-HCNL with Anti-drain (LCNL & HCNL) : Eliminates drainage and refill effect, and improves efficiency in pulse irrigation Continuously self flushing: Flushes debris as it is detected, throughout operation, not just at the beginning or end of a cycle, ensuring uninterrupted dripper operation. TurboNet™ labyrinth assures wide water passages, large deep and wide cross section improves clogging resistance. Widest water passages within the dripper. Dripper can be positioned exactly where required. Number of drippers can be increased so as to increase water quantity supply aimed at meeting tree growth rate requirement. Allows the installation of “spider assembly”, splitting the drip supply into a number of drip outlets. Which Dripper works for you?
