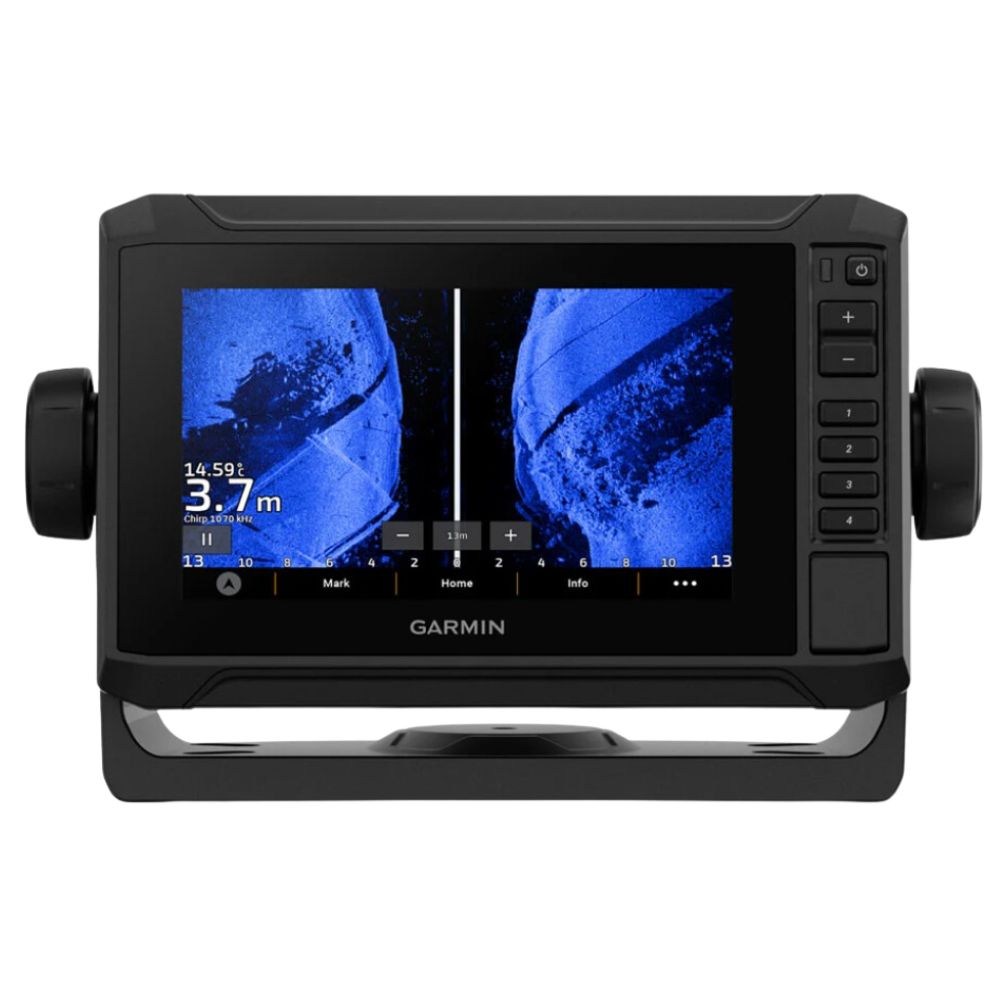

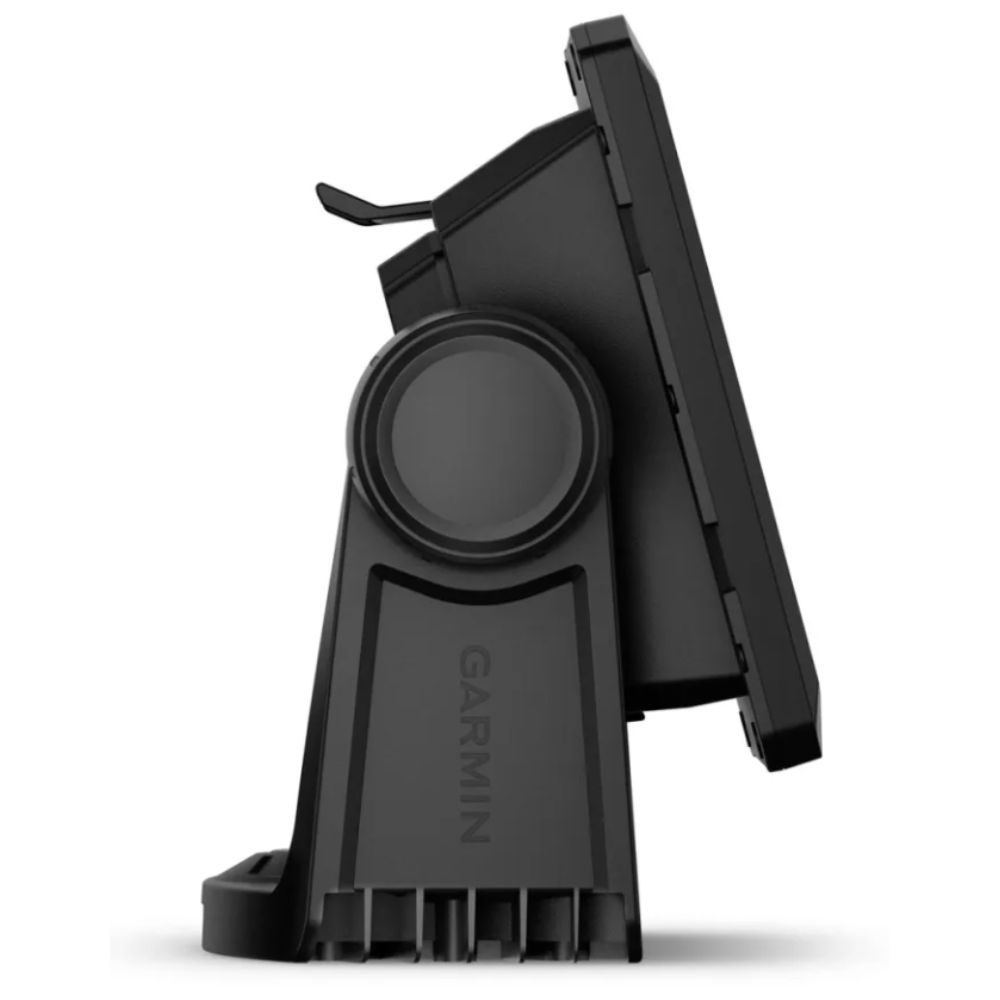

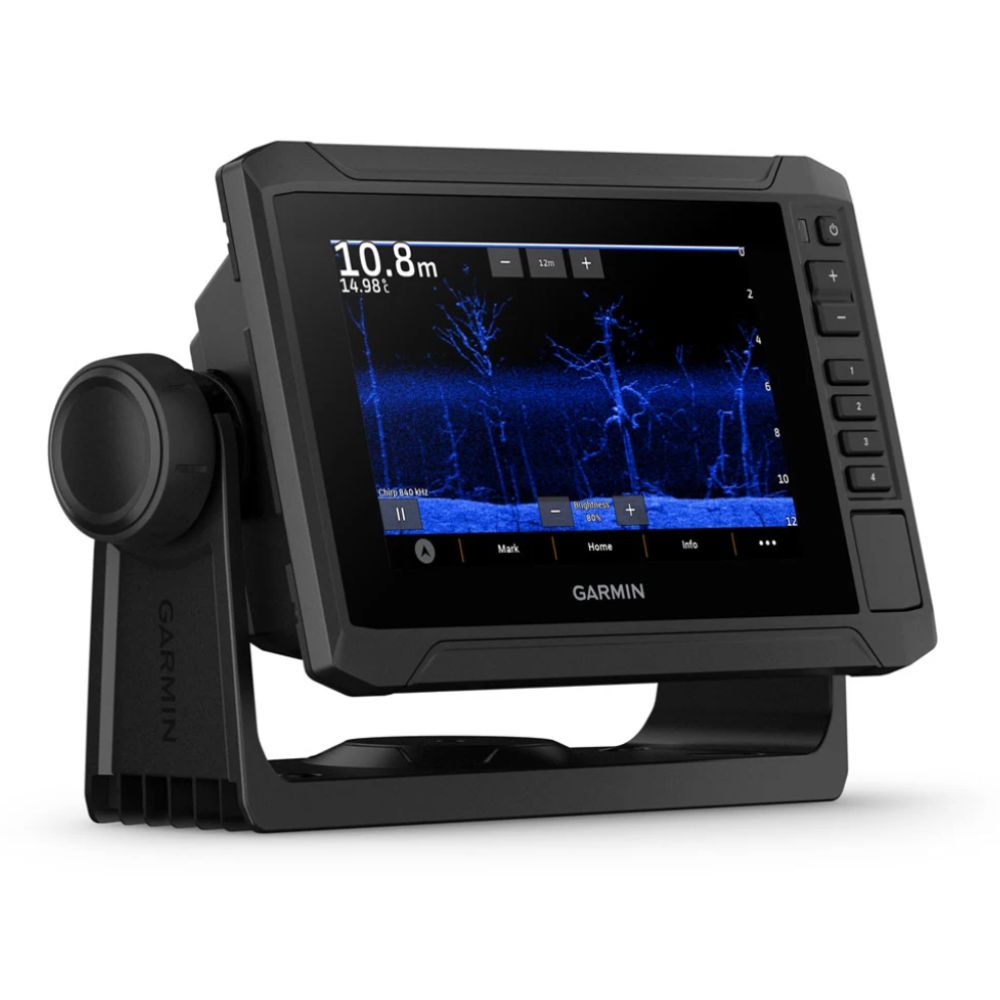

GARMIN ECHOMAP UHD2 92sv With GT56UHD TransducerThe 9″ ECHOMAP™ UHD2 touchscreen with keyed-assist chartplotter knows the water better than a local. Its high-resolution display offers improved detail, clarity and viewing angle. See clear, sharp fish arches with Garmin traditional sonar. ClearVü™ and SideVü™ scanning sonars feature vivid color palettes for clear, high-contrast views all around your boat (transducer sold separately). ECHOMAP UDH2 also supports LiveScope™ sonar systems.Built-in Wi-Fi® connectivity lets you wirelessly share sonar, waypoints and routes with another ECHOMAP UHD2 chartplotter. Wherever you drop your line, get improved position accuracy, particularly in areas where signals are reflected or weak, with multi-band GPS. You can also pair with the free all-in-one ActiveCaptain® app on your compatible smartphone for access to the OneChart™ feature, software updates and more. The chartplotter supports NMEA 2000® networks to connect your compatible autopilots, digital switching, music, and more to view all on one screen.Easy-to-use 9″ chartplotter with a bright, sunlight-readable touchscreen display with improved detail, clarity and viewing angle Built-in worldwide basemaps with support for Garmin Navionics ™ and Garmin Navionics Vision ™ cartography, BlueChart® g3 coastal charts and LakeVü™ g3 inland maps Built-in Wi-Fi® connectivity lets you wirelessly share sonar, waypoints and routes with another ECHOMAP UHD2 chartplotter” Included GT56-TM transducer for Garmin traditional, ClearVü™ and SideVü™ scanning sonarsSensors Has a built-in receiver – YES Receiver – 10 Hz NMEA 2000 Compliant – YES GPS – YES GLONASS – YES Galileo – YES BeiDou – YES Supports WAAS – YES Supports multi-band GPS with multiple constellations – YES Built-in mapsBuilt-in AUTO GUIDANCE – YES (downloaded via ActiveCaptain app)Additional card supportGarmin NAVIONICS ™ – YES Garmin NAVIONICS VISION ™ – YES Topo – YES Standard display – YES Outlines Garmin QUICKDRAW – YES Chartplotter FeaturesAIS – YES DSC – YES Supports FUSION-LINK™ compatible radios – YES Compatible with ACTIVECAPTAIN® – YES Sailing features – YES Sonar features and specificationsDisplays sonar – YES Output power – 500 W Conventional Sonar (Dual Frequency/Beam) – Integrated (Single Channel CHIRP, 50/77/83/200 kHz, L, M, H CHIRP) CLEARVÜ – built-in 260/455/800/1000/1200 kHz SIDEVÜ – built-in 260/455/800/1000/1200 kHz PANOPTIX™ sonar – YES LIVESCOPE – YES ConnectionsNMEA 2000 ports – YES GARMIN Marine Network Ports – 1 12-pin sensor ports – 1 BLUETOOTH® pairing – YES ANT (connection) – YES GARMIN WI-FI Network (LAN) – YES Electrical characteristicsInput power – 9 to 18 VDC Typical current consumption at 12 V DC – 1.53 A Maximum current consumption at 12 V DC – 3.2 A Maximum power consumption at 10 V DC – 18.4 WWhat’s in the Box: ECHOMAP UHD2 92sv GT56-TM transducer Power cable Tilt mount with quick-release cradle Protective cover Hardware Documentation
