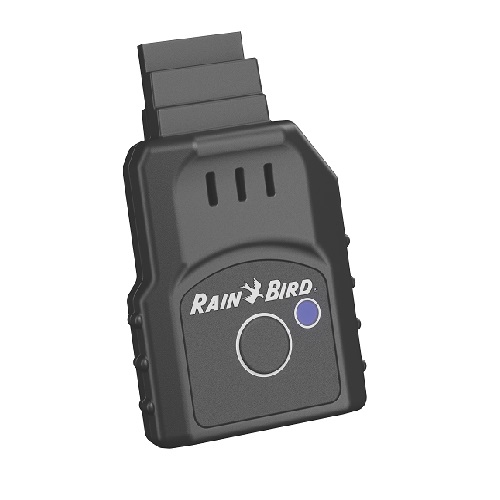

Specifications Supported Mobile Devices Apple devices running iOS 8.0 or greater; Android devices running OS 6.0 (Marshmallow) or later Features Seasonal Adjust WiFi Mobile App Wireless Frequency Bands Supported 2.4 GHz only Wireless Networks Supported 802.11 b/g/n only WiFi Security Modes Supported None, Open, WEP, WPA-TKIP, WPA-AES, WPA2-TKIP, WPA2-AES, WPA2-AES-TKIP Communication Modes Supported Communication with module via module Access Point (hotspot); Communication with module via local area network; Communication with module via Rain Bird relay server Operating Specifications Operating Temperature: 14° F (-10° C) to 149°F (65°C) Storage Temperature: -40°F (-40°C) to 150°F (66°C) Operating Humidity: 95% max @ 50°F to 120°F (10°C to 49°C) non-condensing environment Electrical Specifications 24VAC(RMS) 50/60Hz; 55mA max Certifications UL, cUL, CE, CSA, FCC Part 15b, WEEE, S-Mark, IP30, IFETEL, RE-D, LVD, RoHS Dimensions Width: 1.13 in. Height: 1.83 in. Depth: 0.48 in. Overview Rain Bird now offers the LNK WiFi Module for Residential and Light Commercial Rain Bird controllers. The New Rain Bird LNK WiFi Module allows easy access and control of a Rain Bird irrigation system from anywhere in the world. With the LNK WiFi Module and Rain Bird’s FREE mobile app, users get access to off-site management, real-time alerts and advanced water management tools via their smart phone or tablet. First Time Set Up You can follow the step by step First set up Guide by clicking this Link: Rain Bird LNK WiFi Set up / Troubleshooting
